Dual Spectrum Thermal Control Resolving Equine Deep Tendonitis

Delivering high-peak power through modulated 980nm and 1470nm wavelengths penetrates deep equine tendon sheaths, accelerates collagen cross-linking, and eliminates heat-induced collagen denaturation during acute equine rehabilitation protocols.

Severe flexor tendon strain in performance horses routinely ends competitive careers due to thick scar formation and poor vascularization. When a seven-year-old Thoroughbred stallion presents with acute superficial digital flexor tendonitis, traditional cold therapy and systemic anti-inflammatories only mask pain without repairing disrupted collagen bundles. The fundamental physics challenge in equine sports medicine stems from tissue density: thick epidermal layers and dense collagen fibers reflect and scatter low-level photon energy, preventing effective biostimulation from reaching deep core lesions. Rebuilding structural tensile strength requires precise optical energy delivery that reaches deep tendon cores without burning surrounding soft tissue.

By integrating deep-penetrating 980nm light with high-water-affinity 1470nm radiation, advanced Class 4 equine platforms bypass surface optical barriers. The 980nm wavelength accelerates local microcirculation by releasing bound nitric oxide from hemoglobin, while 1470nm energy targets trapped edema in damaged tendon sheaths to speed up fluid clearance. Dynamic duty cycle control alternates micro-second laser pulses with active thermal relaxation periods, protecting delicate collagen matrix structures from heat degradation while delivering high energy doses directly to damaged tendon cores.

Veterinary sports medicine specialists using targeted laser therapy treatment in field rehabilitation focus on precise photon dosage rather than raw surface heat. Controlled pulse intervals create non-thermal mechanical stress waves within damaged tissue, triggering tenocyte proliferation and speeding up structural repair in dense connective tissue.

Clinical Case Protocol and Rehabilitation Data

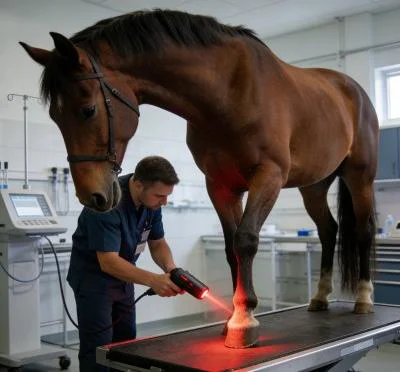

This eight-week field evaluation tracks a competition horse diagnosed with acute superficial digital flexor tendonitis, treated using the HorseVet 3000U5 dynamic laser system.

Clinical Parameter	Baseline (Week 1)	Mid-Treatment (Week 4)	Protocol Completion (Week 8)
Patient Profile	7-year-old Thoroughbred Stallion	520 kg Body Mass	Acute Grade 3 Flexor Tendonitis
Wavelength Ratio	980nm (80%) + 1470nm (20%)	980nm (50%) + 1470nm (50%)	980nm (30%) + 1470nm (70%)
Peak Output Power	15 Watts Pulsed Mode	22 Watts Dynamic Duty Cycle	28 Watts High-Frequency Pulsed
Pulse Frequency / Duty	50 Hz at 40% Duty Cycle	200 Hz at 50% Duty Cycle	800 Hz at 60% Duty Cycle
Session Energy Delivered	2,400 Joules along Tendon Cavity	3,600 Joules along Tendon Cavity	4,200 Joules along Tendon Cavity
Clinical Outcome	Severe Lameness & Core Lesion	60% Lesion Filling & Heat Reduction	Full Tendon Realignment & Work Ready

Ultrasound monitoring throughout the eight-week treatment confirmed progressive tendon fiber alignment. Initial treatments focused on fast pain management using targeted laser pain therapy, gradually transitioning to high-energy tissue remodeling protocols as local fluid accumulation decreased.

Research in veterinary regenerative therapy published by the Equine Veterinary Journal confirms that applying targeted photon densities between 10 to 15 Joules per square centimeter to injured flexor tendons increases type-I collagen synthesis while reducing disorganized scar tissue formation. Combining dynamic thermal control with broad-spectrum photobiomodulation provides equine practitioners with a powerful non-invasive tool for handling complex cases requiring dedicated pet laser therapy.

Compared to conventional stall rest and systemic anti-inflammatory drugs that often result in brittle scar tissue and high re-injury rates, targeted dual-spectrum laser protocols promote healthy, parallel collagen realignment directly inside the lesion core. This targeted optical approach reduces local inflammation, shortens stall rest requirements, restores original tendon elasticity, and returns athletic horses to peak performance without drug dependency or thermal tissue damage.
